TONGKUAI small machine room elevator brings about the more compact machine room layout through small traction machine and thin control cabinet. It fulfills small machine room. Compared with traditional elevator with machine room, it effectively reduces machine room height and saves machine room area.
It brings about the more compact construction layout. It reduces well area and machine room area. Machine room is exactly the same as well. It cuts down top-floor height and machine room height. It decreases influence of machine room to building outline. Traction machine, control cabinet and speed governor etc. have been put in machine room. It is convenient for repair and safe for operation.

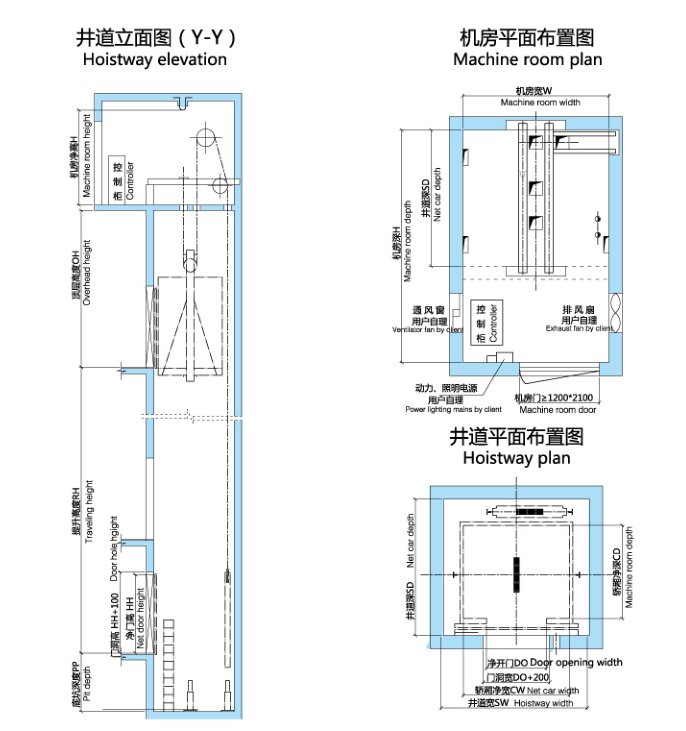

| Load(kg) | NO.of persons | Speed(m/s) | car opening size | Door open type | Car net size | Shaft inside dimension | Machine room size | ||
(Width* Height) (DO*HH)mm | Inner size(CW*CD)mm | (Width* Depth) (DO*HH)mm | Pit PP | Overhead height OH | (Width* Height) (DO*HH)mm | ||||
| 450 | 6 | 1.0 | 800*2100 | Center opening | 1200*1000 | 1850*1700 | 1500 | 4500 | 1850*1700 |
| 1.5/1.75 | 1600 | ||||||||
| 630 | 8 | 1.0 | 800*2100 | Center opening | 1400*1100 | 1950*1800 | 1500 | 4500 | 1950*1800 |
| 1.5/1.75 | 1600 | ||||||||
| 800 | 10 | 1.0 | 900*2100 | Center opening | 1400*1300 | 2000*2050 | 1500 | 4500 | 2000*2050 |
| 1.5/1.75 | 1600 | ||||||||
| 1000 | 13 | 1.0 | 900*2100 | Center opening | 1600*1500 | 2200*2200 | 1500 | 4500 | 2200*2200 |
| 1.5/1.75 | 1600 | ||||||||
| 1250 | 16 | 1.0 | 1100*2100 | Center opening | 1800*1600 | 2400*2350 | 1500 | 4500 | 2400*2350 |
| 1.5/1.75 | 1600 | 4700 | |||||||
| 1350 | 18 | 1.0 | 1100*2100 | Center opening | 1800*1700 | 2400*2450 | 1500 | 4500 | 2400*2450 |
| 1.5/1.75 | 1600 | 4700 | |||||||
| 1600 | 21 | 1.0 | 1100*2100 | Center opening | 2000*1700 | 2600*2450 | 1500 | 4500 | 2600*2450 |
| 1.5/1.75 | 1600 | 4700 | |||||||

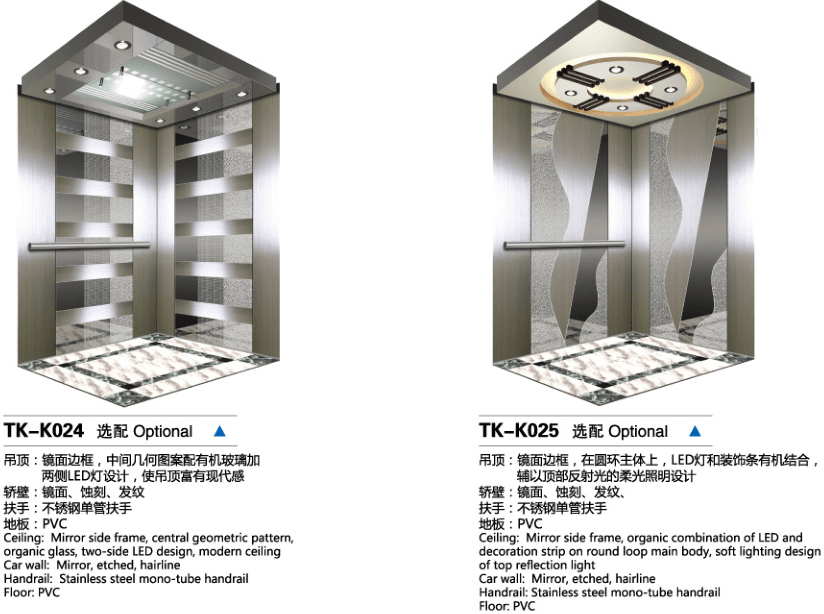

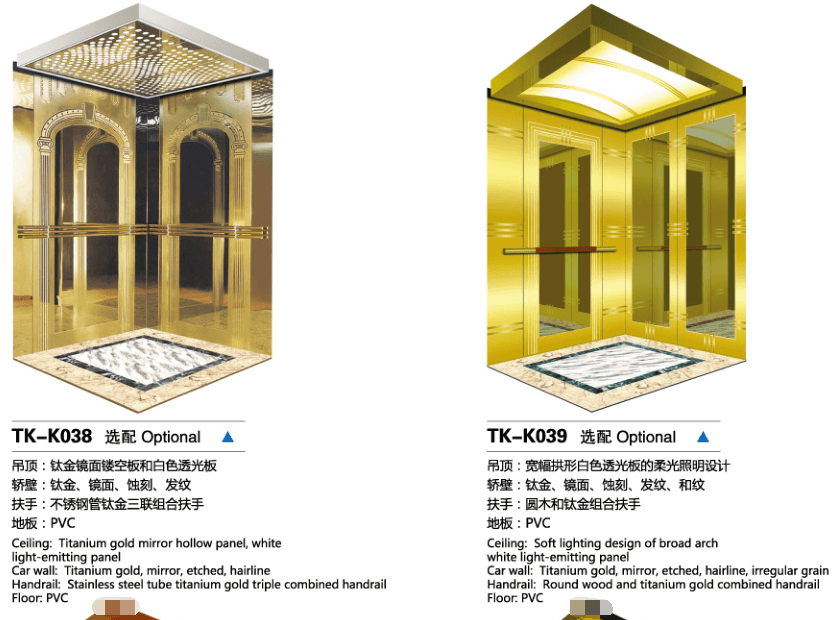

Optional:
Q1: Payment Term?
A:T/T or L/C at sight
Q2.What is the warranty period?
A: 12 months after shipment
Q3: What is covered by warranty?
A: Within warrant period, replacement to any broken and defected parts will be provided. Parts in weight of less than 2KG will be delivered by DHL/UPS, while other parts will be delivered by SEA.
Q4. Installation & Maintaining & Technical Support.
A:The complete documents including Installation manual will be delivered along with the elevator in the container .Remote technical support is available via email, what`s app, skype and etc.
If necessary , a technician will be sent to assist you on the worksite upon your request.
Q5: How could I trust you?
A:We have exported to many countries, such as Mid East, Africa, Domestic Market, Southeast Asia, Eastern Europe ,etc.
Q6:Could you accept trade assurance order?
A:Yes, we welcome any trade assurance order, and we have done more than 30 transactions in the past year.
